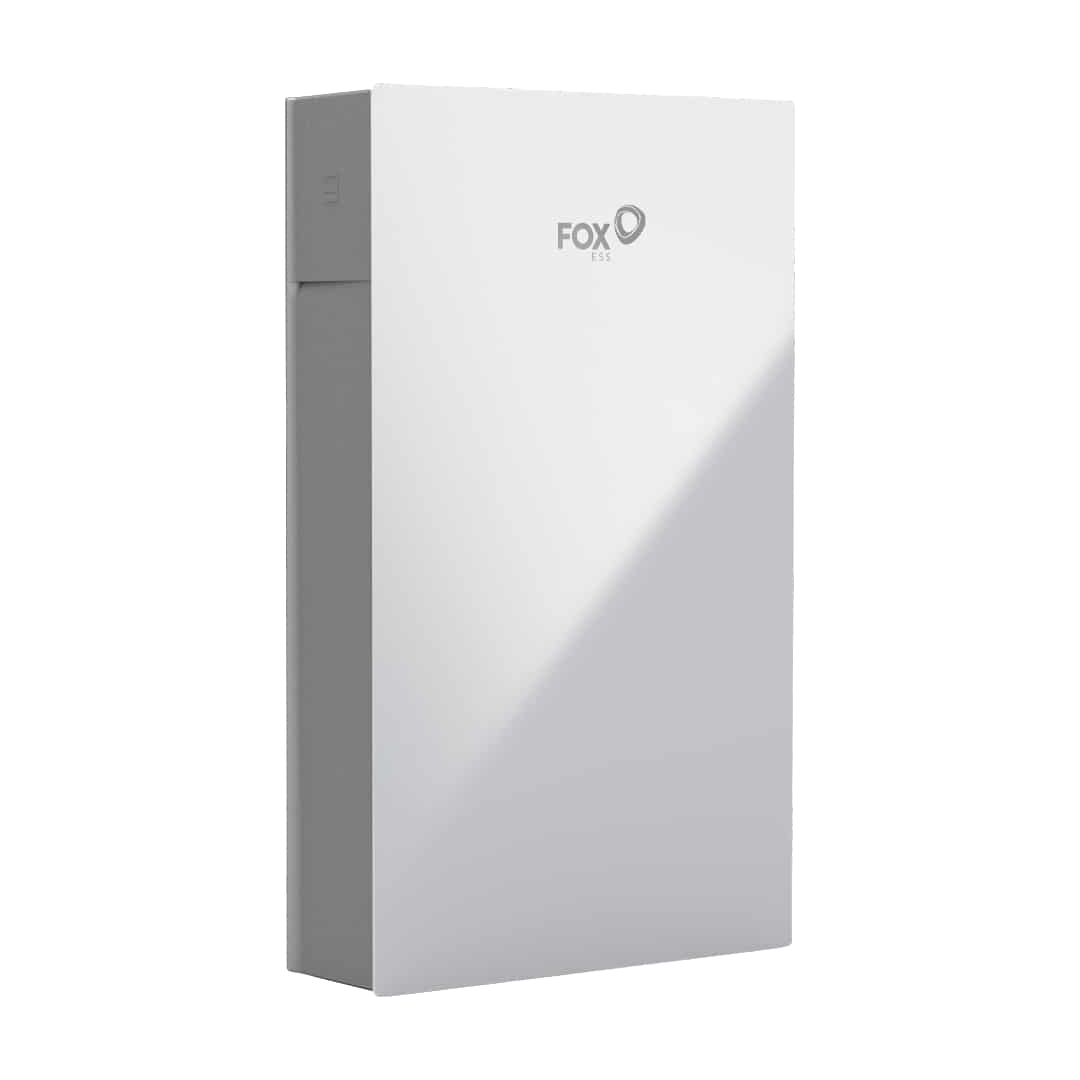

Fox EVO Series 10kW All-in-One Inverter + 10.24kWh Battery Storage

The Fox EVO Series 10kW is an integrated hybrid inverter and battery storage system designed to provide efficient solar energy management and reliable backup power. Suitable for both indoor and outdoor installations, the system combines a high-performance 10kW hybrid inverter with a 10.24kWh lithium iron phosphate (LFP) battery and built-in Emergency Power Supply (EPS) in one compact solution.

Fox EVO Series 10kW Inverter Features

• Triple MPPT design for greater flexibility across multiple solar arrays
• Supports up to 300% PV oversizing for increased solar generation potential
• Low 80V start-up voltage allows earlier daily energy production
• Integrated LCD display with magnetic cover
• Built-in EPS with 200% overload capability for backup power support
• Export limitation compatibility (CT / Meter / DRM0 / ESTOP)
• Integrated Wi-Fi connectivity with no separate dongle required
• Parallel operation supported for up to three units
• IP66-rated protection for indoor or outdoor installation

Fox EVO Series 10.24kWh Battery Features

• Integrated 10.24kWh lithium iron phosphate (LFP) battery
• Expandable storage capacity up to 30.72kWh using additional units
• High charging and discharging performance up to 10kW per unit
• 95% depth of discharge for greater usable battery capacity
• IP66-rated enclosure suitable for outdoor environments
• Integrated battery heating functionality
• Built-in fire suppression system
• High round-trip efficiency for improved overall performance

Why Choose the Fox EVO Series?

• Hybrid inverter and battery storage combined in a single system
• Modern, low-profile design suitable for a range of installations
• Expandable battery storage up to 30.72kWh
• Integrated EPS for backup power during outages
• Remote monitoring and system control included
• Suitable for both hybrid and AC-coupled applications
