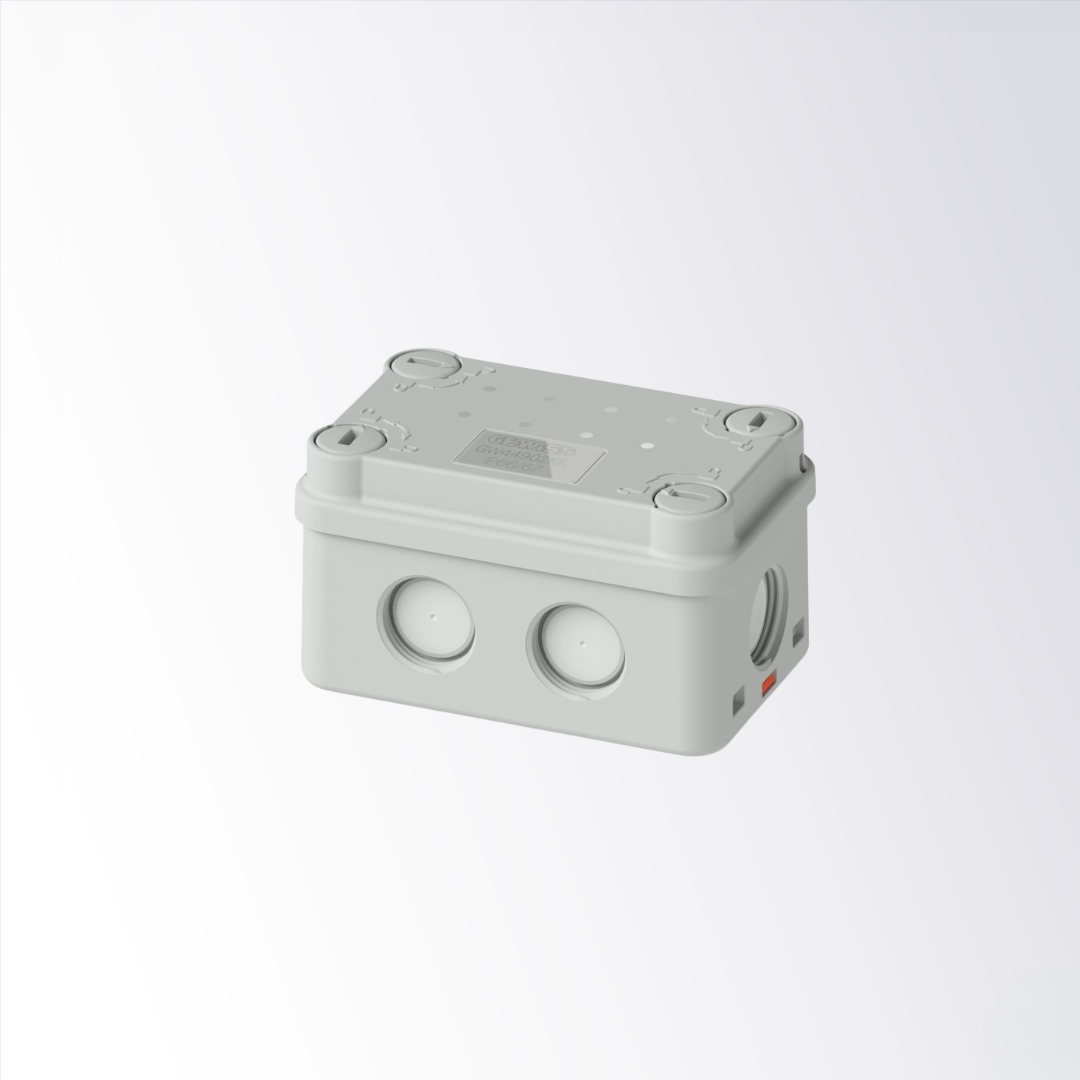

Gewiss - Grey IP66/IP67 Surface Mount Junction Box 88 x 55 x 51 mm - GW44902KK

The Gewiss IP66/IP67 Compact Grey Junction Box is a space-saving electrical enclosure designed to provide dependable protection for electrical connections in residential, commercial and industrial installations. Its compact footprint makes it ideal for applications where installation space is limited, while still delivering the high-performance protection expected from the Gewiss range.

Manufactured from durable, UV-resistant, halogen-free materials, this enclosure is built for long-term indoor and outdoor use. The captive low-profile lid is secured with four quarter-turn sealable screws for fast, secure access, while six M20 threaded membrane cable entries provide flexible cable routing. A fixing bracket is included for quick and secure installation.

Key Features

• Ultra-compact enclosure ideal for confined installation spaces
• IP66 (membrane) / IP67 (with cable gland) ingress protection
• UV-resistant construction suitable for indoor and outdoor applications
• Halogen-free materials compliant with EN IEC 63355
• Captive low-profile lid with 4 × ¼-turn sealable screws
• Six M20 threaded membrane cable entries for flexible cable management
• Suitable for standard electrical junction applications
• Includes fixing bracket for easy installation
• Insulation Class II
• Rated operational and insulation voltage of 750V
• Finished in Grey (RAL 7035)
