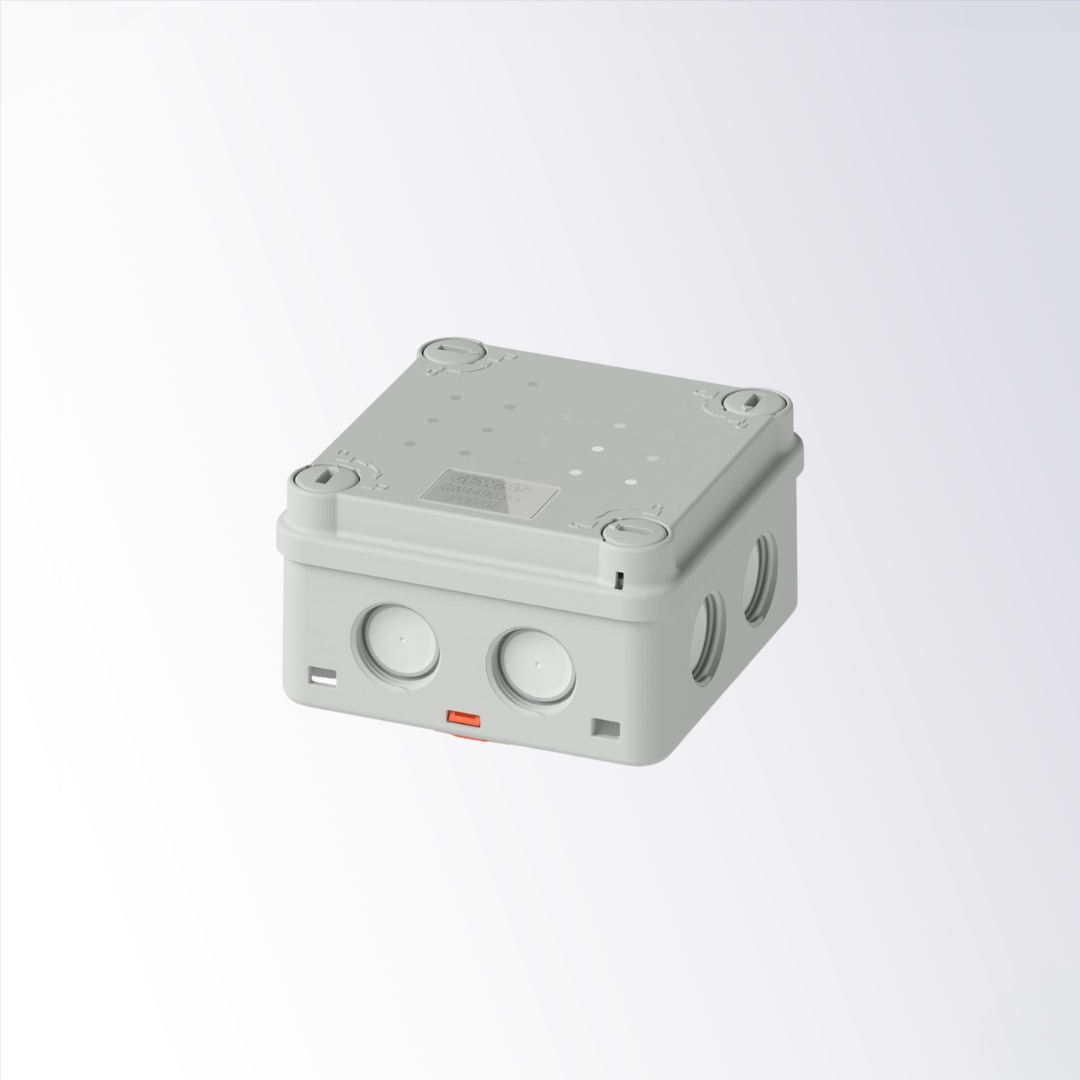

Gewiss - Grey IP66/IP67 Surface Mount Junction Box 88 x 88 x 51 mm - GW44903KK

The Gewiss IP66/IP67 Compact Grey Junction Box is a durable electrical enclosure designed for installations where space is limited without compromising on protection or performance. Offering the same high level of reliability as larger Gewiss enclosures, it provides a secure solution for housing electrical connections in both indoor and outdoor environments.

Manufactured from high-quality, UV-resistant, halogen-free materials, this compact junction box is built to withstand demanding conditions. It features a captive low-profile lid with four quarter-turn sealable screws for quick and secure access, while eight M20 threaded membrane cable entries allow for flexible cable routing. Supplied complete with a fixing bracket, the enclosure is quick and easy to install.

Key Features

• Compact enclosure ideal for installations with limited space
• IP66 (membrane) / IP67 (with cable gland) ingress protection
• UV-resistant construction suitable for indoor and outdoor applications
• Halogen-free materials compliant with EN IEC 63355
• Captive low-profile lid with 4 × ¼-turn sealable screws
• Eight M20 threaded membrane cable entries for flexible cable routing
• Suitable for standard electrical junction applications
• Includes fixing bracket for easy installation
• Insulation Class II
• Rated operational and insulation voltage of 750V
• Finished in Grey (RAL 7035)
